A Victron off-grid cabin system almost always belongs on 48V. Higher battery voltage means a quarter of the current of a 12V system for the same power, so cables stay manageable and inverter efficiency goes up. This guide lays out a typical 48V Victron cabin build, part by part, using figures from Victron’s datasheets.
Electrical work can be dangerous: follow the manual, fuse and size every cable correctly, and use a licensed electrician for anything connected to household wiring.
Victron Off-Grid Cabin System: The Parts
| Part | Pick | Datasheet figures |
|---|---|---|
| Inverter-charger | MultiPlus-II 48/3000/35 or 48/5000/70 (120V) | 2,400W or 4,000W continuous at 25°C; 35A or 70A charger; 11W or 15W zero-load |
| Solar | SmartSolar MPPT 150/35, or a 250V-class MPPT for bigger arrays | 150/35: 2,000W nominal PV at 48V |
| Distribution | Lynx Distributor | 1000A busbar, MEGA fuses (58V-rated for 48V) |
| Monitoring | SmartShunt + Cerbo GX | Real state of charge, VRM remote monitoring |
| Battery | 48V LiFePO4 bank | Sized to your daily use |
Why 48V for a Cabin
A 2,400W load draws about 200A at 12V but only 50A at 48V (watts ÷ volts, estimate). Lower current means thinner cable, smaller fuses and less voltage drop. The MultiPlus-II 48/3000 is also slightly more efficient than its 12V version: 95% versus 93% maximum.
Sizing Example (Estimate)
Say the cabin uses 4kWh a day: fridge, lights, water pump, internet and a few hours of power tools.
- Battery: 4kWh × 2 days of autonomy ÷ 0.8 usable ≈ 10kWh, about 200Ah at 48V.
- Solar: 4kWh ÷ 4 sun hours ≈ 1kW minimum; 1.5–2kW gives winter margin. A 2kW array fits one 150/35 at 48V.
- Inverter: loads under 2,400W continuous fit the 48/3000. Well pumps and saws may justify the 48/5000 (9,000W peak).

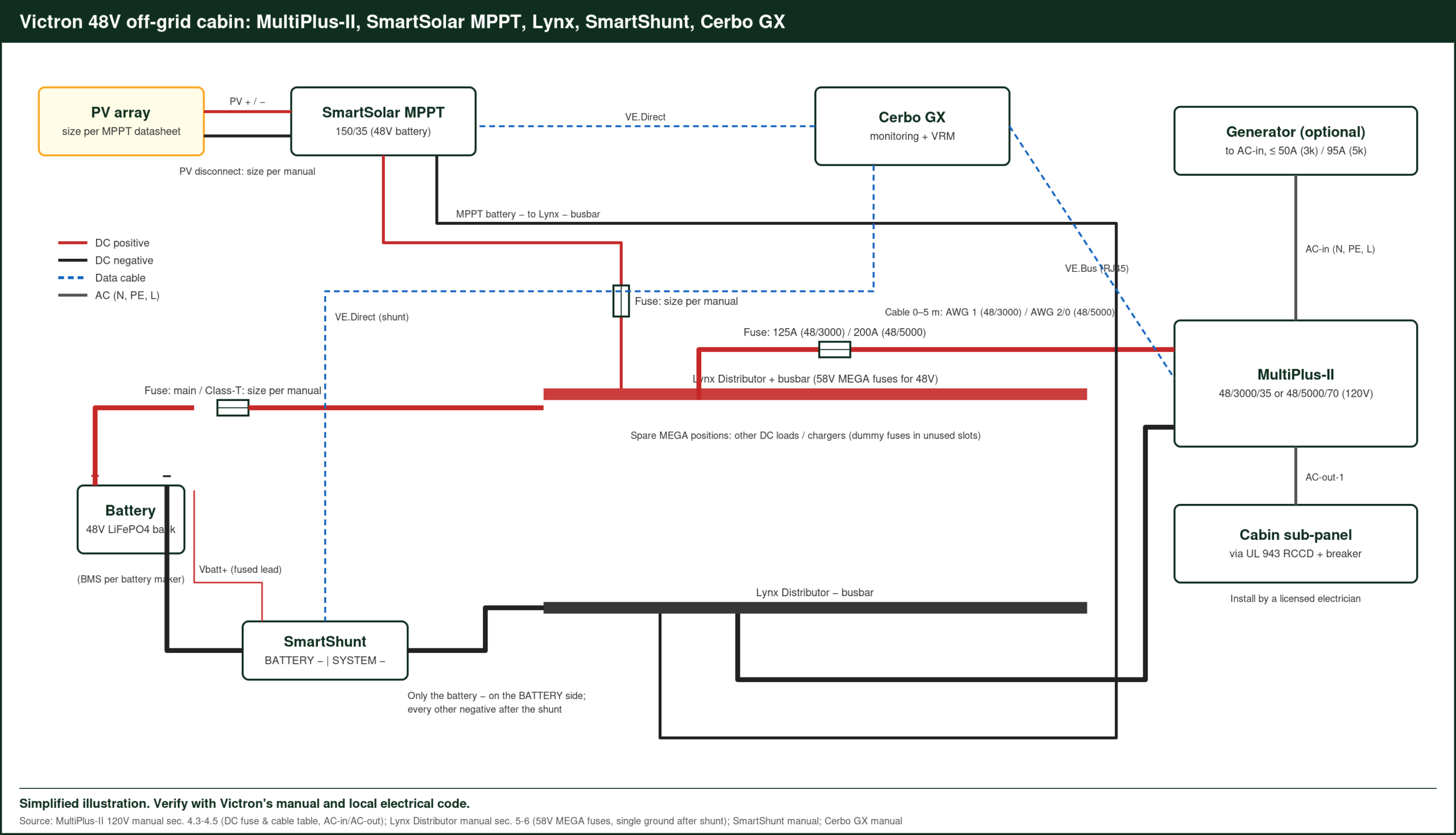

Wiring Order
- Battery to a main fuse or Class-T protection, then the Lynx busbar.
- SmartShunt on the battery negative, before everything else.
- MultiPlus-II and MPPT on their own fused Lynx positions.
- VE.Bus from MultiPlus to Cerbo GX; VE.Direct from MPPT and shunt to the Cerbo.
- AC output to the cabin’s sub-panel, installed by an electrician.
Generator Backup
The MultiPlus-II charges at up to 35A (48/3000) or 70A (48/5000) from a generator. PowerControl caps the generator current, and the Cerbo GX can auto-start compatible generators on low state of charge.
For full specifications, see Victron’s pages for the Victron MultiPlus-II and Lynx Distributor.
Choosing a Solar Charge Controller at 48V
| SmartSolar MPPT | Nominal PV power at 48V | Good for |
|---|---|---|
| 150/35 | 2,000W | Small cabins, weekend use |
| 150/45 | 2,600W | Light full-time use |
| 150/60 | 3,440W | Full-time cabins with moderate loads |
| 250/70 | 4,000W | Longer series strings, bigger arrays |
| 250/100 | 5,800W | Large arrays and heavy winter loads |
Figures from Victron’s SmartSolar datasheets. The 250V models let you wire more panels in series, which keeps current low on a long cable run from a ground mount to the cabin. Several MPPTs can share a battery bank and are coordinated by the Cerbo GX.
Planning for Winter
Winter is usually what sizes a cabin system. Shorter days and a low sun angle can cut daily solar harvest to a third or less of summer output in northern locations (estimate; check a solar calculator for your site). Three practical ways to plan for it:
- Tilt the panels steeper: a ground mount near your latitude angle (or more) catches the low winter sun and sheds snow.
- Oversize the array: panels are inexpensive compared with batteries, and an MPPT simply limits output on bright summer days.
- Let the generator do the rest: the MultiPlus-II charger and Cerbo GX auto-start cover the darkest weeks.
Cable and Fuse Estimates
| Connection | Example current | Typical cable (estimate) |
|---|---|---|
| Battery to Lynx (MultiPlus-II 48/5000 at full load) | About 90–100A | 35–50mm² |
| Lynx to MultiPlus-II 48/3000 | About 55A | 25–35mm² |
| Lynx to MPPT 150/35 | 35A | 10–16mm² |
Estimates for short runs; size every cable and fuse from Victron’s manuals and your local code. At 12V, the same loads would need roughly four times the current and much heavier cable.
Example Daily Energy Budget
| Load | Energy per day (estimate) |
|---|---|
| Efficient fridge-freezer | 1.0kWh |
| LED lighting | 0.3kWh |
| Well or water pump | 0.5kWh |
| Starlink or other internet | 1.0kWh |
| Laptop, phones, TV | 0.5kWh |
| Power tools and occasional microwave | 0.7kWh |
| Total | About 4kWh |
Example values; measure your own loads with the SmartShunt once the system is running.
Growing the System Later
A 48V Victron cabin build is easy to expand. You can add a second MPPT and more panels, add battery modules on the Lynx busbar, or parallel a second MultiPlus-II of the same model for more AC power. Planning cable routes and Lynx positions with spare capacity on day one makes those upgrades simpler.
Commissioning Tips
Before you power up loads, set the MultiPlus-II’s battery type and charge voltages in VEConfigure or VictronConnect to match your battery maker’s figures. Do the same on each MPPT, or let the Cerbo GX apply the battery’s limits through DVCC if the battery has a compatible BMS. Then test a generator start and a full charge cycle while you’re on site.
FAQ
Can I get 240V for a well pump?
Two identical MultiPlus-II 120V units can be set up for 120/240V split phase.
Do I need a Cerbo GX off-grid?
It’s strongly recommended for coordinating the charger and solar and for remote checks.
Victron batteries at 48V?
Victron’s 12.8V and 25.6V Smart batteries can be combined in series. Many cabin builds use third-party 48V packs.
How big should the generator be?
Enough to carry the charger plus any loads running while it charges. For a MultiPlus-II 48/3000 charging at 35A (about 2kW) plus household loads, a 3–4kW generator is a common pick (estimate).
Can I monitor the cabin when I’m away?
Yes. The Cerbo GX sends data to Victron’s free VRM portal over Wi-Fi, Ethernet or an optional GX LTE 4G modem.
